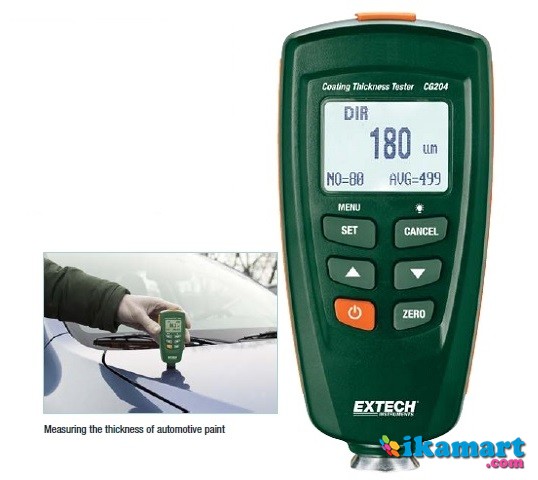

Extech CG204 Coating Thickness Tester :

Automatic substrate recognition

Magnetic induction for ferrous substrates

Eddy current measurement for non-ferrous substrates

Easy-to use menu system

Two measuring modes: Single and Continuous

Two working modes: Direct and Group

Memory stores 400 readings: 80 Direct and 320 Group

User-programmable high/low alarms

Min/Max/Average, one or two point calibration

Complete with two AAA batteries, USB cable, software, Calibration Iron, Calibration Aluminum, Precision Standards, and pouch case.

Spesification :

Sensor Probe Ferrous Non-Ferrous

Working principle Magnetic Induction Eddy Current

Measuring Range 0 to 1250 m 0 to 1250 m

0 to 49 mils 0 to 49 mils

Basic Accuracy 3% 3%

Resolution0.1 m (0.004 mils) 0.1 m (0.004 mils)

Minimum Curvature radius1.5 mm (59.06 mils 3 mm (118.1 mils)

Minimum Diamate 0.5 mm (19.69 mils)0.3 mm (11.81 mils)

Minimum Thickness 0.5 mm (19.69 mils)0.3 mm (11.81 mils)

Dimensions 4.7 x 2.4 x. 1.25" (120 x 62 x 32 mm)

Weight 6.17 oz (175 g)
