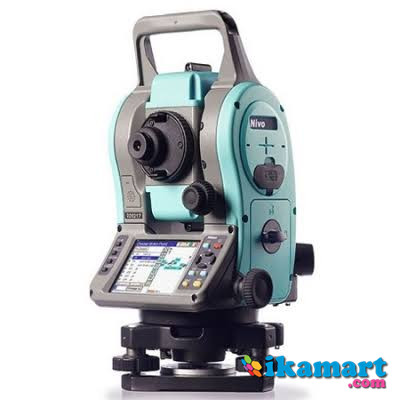

Overview for the NIKON NIVO 5.C 5″ REFLECTORLESS TOTAL STATIONItem condition: NewThe Nikon Nivo 5.C Reflectorless Total Station with 5-second accuracy instantly calculates measurements onsite with its built-in field software. The legendary Nikon high clarity optics provides clearer images in bright and low light conditions to record distances and angles with utmost precision. This total station also features Bluetooth capability for connecting to data collectors and a compact and lightweight design for easy transport.
The Nivo 5.C’s powerful and accurate EDM precisely measures objects up to 1,640 feet away without the need for a prism and approximately 16,404 feet using a single prism. The red laser pointer is also very useful for outdoor aiming and stakeout assistance.
This field instrument features a detachable tribrach, tilt sensor and dual-axis compensator for stable angle measurements even on rough terrain. It also comes standard with an optical plummet which can be upgraded to a laser plummet by choosing the option on the upper right hand corner of the page.
| General | |
| Weight | 8.4 lbs (3.8 kg) |
| Dimensions | 5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4) |
| Warranty | 2-year |
| Protection Class | IP66 (dustproof and protection against strong water jets) |
| Internal Memory | 128 MB |
| Software | Spectra Survey Pro |
| Tribrach | Detachable |
| Guide Light | Red LED |
| Angle Measurement | |
| Measuring Method/Reading System | Absolute encoder |
| Minimum Reading | 1-second |
| Accuracy | 5-second |
| Diameter of Circle | 2.4 in (6 cm) |
| Distance Measurement | |
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
| Minimum Reading | 500 m (1,640 ft) |
| Tilt Sensor/Compensator | |
| Range | ±3.5 |
| Type | Dual-axis |
| Method | Liquid-electric detection |
| Battery/Power | |
| Power Source | Two rechargeable Li-Ion batteries |
| Battery Life | 20 hours |
| Battery Life Alert | yes |
| Voltage | 3.8 V DC |
| Optical Plummet | |
| Image | Erect |
| Magnification | 3× |
| Field of View | 5 degrees |
| Focus Range | 0.5 m (1.6 ft) to infinity |
| Level | |
| Circular Bubble Vial | 10 minutes per division/(2 mm) |
| Electronic Level | Displayed on the LCD |
| Telescope | |
| Length of Tube | 125 mm (4.9 in) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 50 mm EDM (2.0 in) |
| Magnification | 30x |
| Field of View | 1 degree 20 arcmin |
| Resolving Power | 3 arcsec |
| Minimum Focus Distance | 1.5 m (4.9 ft) |
| Reflectorless | yes |
| Display and Keypad | |
| Type | QVGA ,16 bit color TFT LCD |
| Sides | Dual |
| Keys | Full numeric keyboard |
| Touchscreen | yes |
| Backlight | yes |
| Pixels | Face 1: 320 x 240 pixels; Face 2: 128 x 64 pixels |
| Temperature | |
| Operating | -4°F~122°F (-20°C~50°C) |
| Storage | -13°F~140°F (-25°C~60°C) |
| Applications | |
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
| Measurement Range (under fair weather conditions) | |
| Single Prism | 5,000 m (16,404 ft) |
| No Prism | 500 m (1,640 ft) |
| Reflector Sheet | 300 m (984 ft) |
| Functions | |
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
| Laser Plummet | |
| Class | 2 |
| Wavelength | 635 nm |
| Interface | |
| Bluetooth | Class 2 |
| USB | Type A and mini B |
| Pin Port | RS-232C |
| Operating System | Windows CE |
