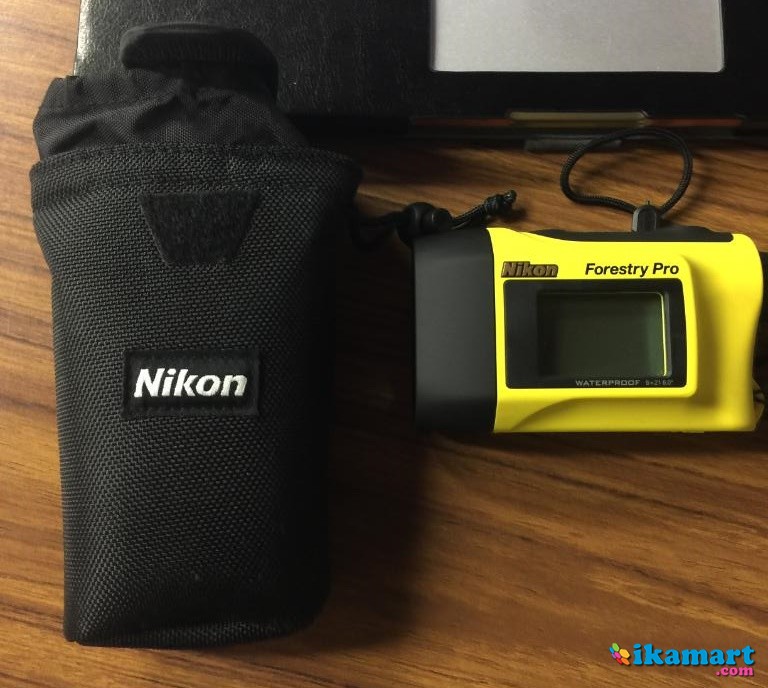

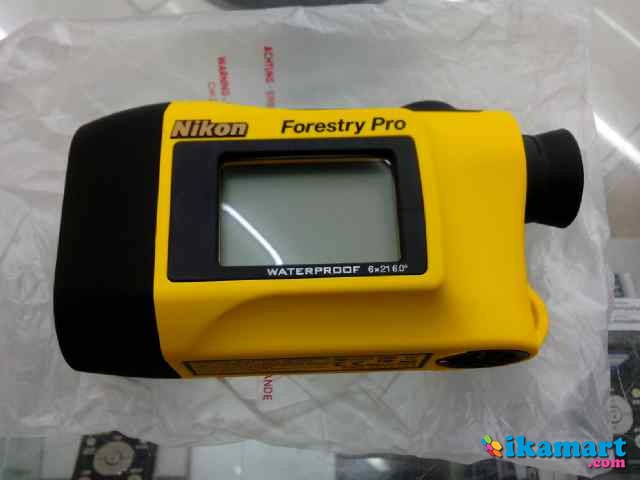

Forestry Pro
Measurement range Distance:10-500m/11-550 yds./33-999 ft.(*999 ft.: 304.5m/333 yds.)
Angle: 89
Distance display (Increment)
[Internal Display]
Act (Actual Distance):
every 0.5m/yd., 1 ft. (shorter than 100m/yds./ft.)
every 1m/yd./ft. (100m/yds./ft. and over)
Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft. (shorter than 100m/yds./ft.)
every 1m/yd./ft. (100m/yds./ft. and over)
Ang (Angle):
every 0.1 (less than 10)
every 1 (10 and over)
*Downward angle from the horizontal line: with display "-"
[External Display]
Act (Actual Distance):
every 0.5m/yd., 1 ft.
Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft.
Ang (Angle):
every 0.1
Finder Magnification (x) 6
Effective objective diameter (mm) 21
Actual field of view () 6.0
Exit pupil (mm) 3.5
Eye relief (mm) 18.2
Dimensions (LxHxW) (mm) 130x69x45
Weight (g) (excluding battery) 210
Power source CR2 lithium battery x 1 (DC3V)
Auto power shutoff function equipped (after 30 sec.)
Safety Class 1M Laser Product (EN/IEC60825-1:2007)
EMC FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI class B
Environment RoHS, WEEE
Darmatek merupakan Supplier Alat Survey, Geologi,GPS,Laboratory,Teknik,dll
