• Dipasang16 April 2018
• Harga36.500.000
• Kotajakarta
• Merksiemens
• Tipemag 5100w
• KondisiBaru

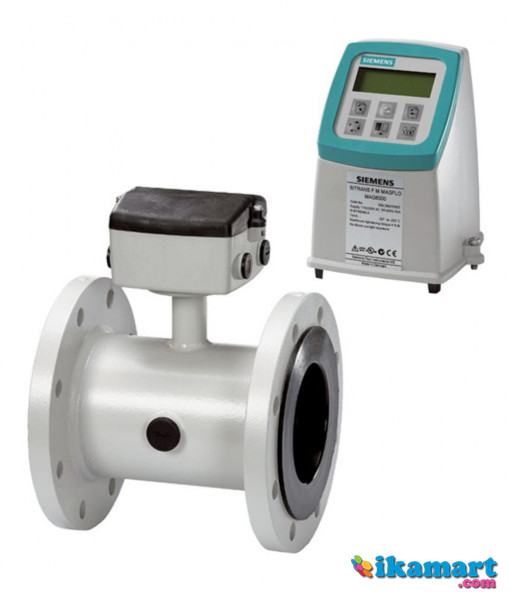

SIEMENS SITRANS MAG 5100W Series Electromagnetic Flowmeter

Detail

Meassuring range 0 to 10 m/ s

Nominal Sizes From DN 15 to DN 2000 ( 1 " to 78 " )

Accuracy 0.2 % 2.5 mm/ s

Operating Pressure Max. 16 bar ( Max. 150 psi)

Ambient temperature From -40 to 70 C ( -40 to 158 F)

Medium Tempreature From -10 to 70 C ( 14 to 158 F)

Liners

EPDM

NBR hard rubber

Ebonite hard rubber

Electrodes Hastelloy C-276

Built-in grounding electrodes

Material Carbon steel, with corrosion resistant

two-component epoxy coating

Drinking Water Approvals EPDM: WRAS, NSF/ ANSI Standard 61, DVGW 270,

ACS and BelgAqua

NBR: NSF/ ANSI Standard 61, WRAS

Ebonite: WRAS

Custody Transfer Approvals OILM R 49

MI-001

PTB K7.2 ( Germany)

BEV OE12/ C040 ( Austria)

General approval MCERTS Sira Certificate No. MC080136/ 00

Benefits

Short lead time

Rugged NBR hard rubber liner for all water and wastewater applications

EPDM liner specifically for drinking water applications requiring special approvals

Ebonite liner for drinking water, water and wastewater applications

Increased low flow accuracy for water leakage detection ( NBR or EPDM liner)

Suitable for direct burial and constant flooding ( IP68)

Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint

Untuk info lebih lanjut hubungi kami

Anugrah Survey

Nama : Heri

Telpn  : 081288802734 / 087888758643

Emal  : herianugrah12@yahoo.co.id

web    : http://www.anugrahsurvey.com

Alamat : Jl. Tc Penerangan No. 17 Kelapa Dua Kebon Jeruk Jakarta Barat 11550
