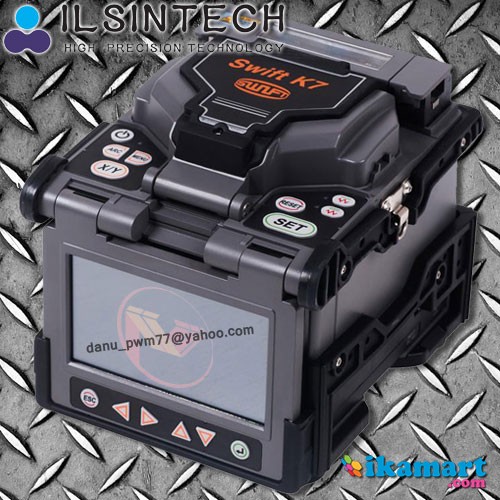

Swift K7 is the advanced typical core alignment type fusion splicer for the medium & long range optical circuit LAN, CATV, FTTx with world-fastest in splicing & sleeve heating time. It delivers high precision performance with low loss.
General specifications :
Subject Description Fiber alignment IPAAS core to core alignment(Image Pattern Analysis Alignment System)
Applicable type of fibers SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), ITU-T G.657
Auto fiber identification SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), SM( ITU-T G.657 A2/B2), SM(ITU-T G.657 B3)
Fiber count Single fiber
Applicable fiber dimensions Clad diameter: 80 ~ 150 , Buffer diameter: 100 ~ 1000
Fiber setting and cleaved length 250 : 8~16mm
Splicing modes Splice mode: 300, heat mode: 100
Typical Splice Loss SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
Return loss > 60dB
Splicing Time 6sec@Quick mode
Splice loss estimate Available
Sleeve heating time 9sec @ IS-45 Sleeve, IS-45 mode 13sec @ IS-60 Sleeve, IS-60 mode
Applicable sleeve 40mm, 45mm, 60mm, 32mm or 28 mm for SOC Storage of splice result Splice loss data-10k, splice image data-10k.
SemuaBarang kami BergaransiResmidanHarga pun
RelatifMurah.
Note:
- BebasbiayaantaruntukwilayahTangerang, Jakarta, danDepok
- MenerimaPengirimanLuar Kota maupunLuarjawa
- Barang yang kami jual NEW 100% danbergaransiresmi.
- Dapatkanharga special untukpembelianlebihdari 2 Unit.
Kami pun menerima REPAIR semuamacammerk SPLICER, OTDR, Site Master danalat TELKOM lainnya.
