• Dipasang3 Desember 2020
• Harga43.000.000
• KotaTangerang
• MerkInno
• TipeView 3
• KondisiBaru

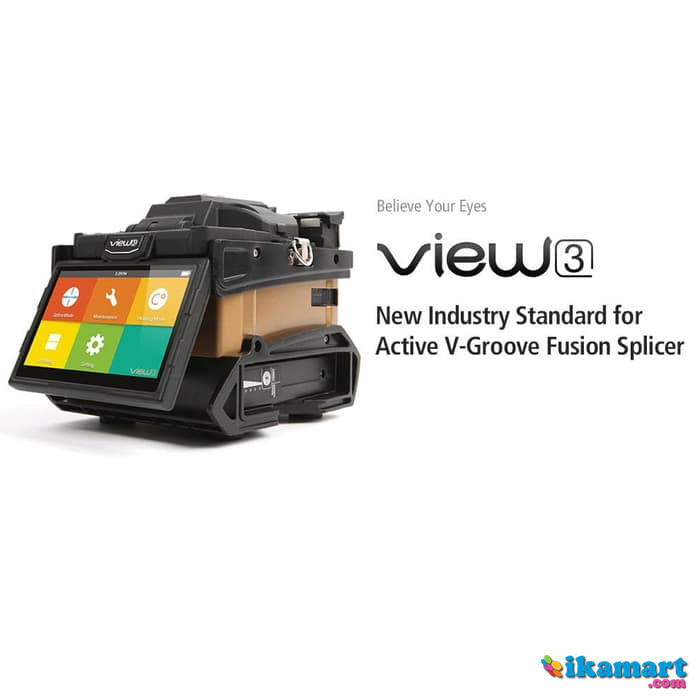

Fusion Splicer Inno View V3, an active clad-alignment splicer with the worlds highest fiber image magnification rate, has the most powerful and innovative performance in the market today. Fusion Splicer Inno View V3 is equipped with user-friendly GUI on a high-resolution color LCD allowing first time splicer users to easily connect the optical fiber. By double-tapping the screen, all users can see and zoom the optical fiber up to 520 times. Fusion Splicer Inno View V3 provides easy and intuitive use.

Features Fusion Splicer Inno View V3

Active V-Groove clad alignment splicing method.

The worlds highest magnification and resolution.

5-inch high-resolution color LCD touch screen.

Detachable SOC holder and heating oven.

High capacity battery.

Technical Specifications Fusion Splicer Inno View V3

Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Average Splice Loss SM:0.03 dB / MM:0.02 dB / DS:0.05 dB / NZDS:0.05 dB/G.657:0.03 dB(ITU-T Standard)

Return Loss 60 dB

Tension Test 1.96 ~ 2.25 N

Splicing Modes max 128 modes

Protection Sleeve Length 20 ~ 60 mm

Battery 170 splice & heat cycles

Electrodes Lifetime 3500 times, can be extended by using an electrode grinder

Dimensions (h w d) 143 130 155 mm

Weight 2.31 kg (with battery)

Technical Details

Part Number View 3

Item Weight 5.1 pounds

Product Dimensions 6.1 x 5.1 x 5.6 inches

Item model number VIEW 3

Batteries 1 Lithium ion batteries required.

Material Other

Item Package Quantity 1

Batteries Included? No

Batteries Required? No

Office :
radionesia

Jalan Cipto Mangunkusumo ( H.Mencong ) , Perumahan Mahkota Simprug Blok B14 No. 6 Tangerang, 15153

NOTED : HARGA TIDAK TERIKAT, SEWAKTU-WAKTU BISA BERUBAH.

Untuk Info Stok dan harga, Silahkan Hubungi :

Imam Baihaqi

WhatsApp : http://wa.me/62882008592900
Email : info.imam1907@gmail.com
Website : www.ikomunika.com
