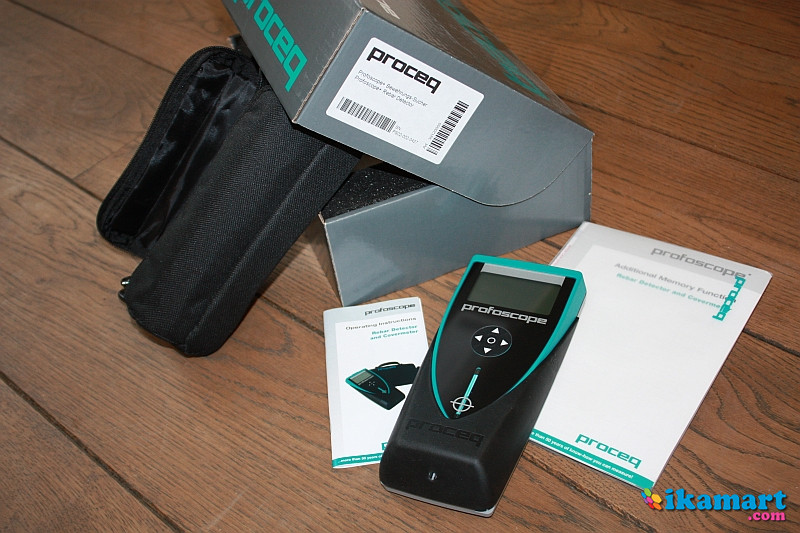

The Profoscope is a versatile, fully-integrated rebar detector and cover meter with a unique real-time rebar visualization allowing the user to actually “ SEE” the location of the rebar beneath the concrete surface to a maximum depth of 180 mm. This is coupled with rebar-proximity indicators and optical and acoustical locating aids.
Rebar diameter can also be estimated within the specified testing range. The Profoscope combines these unique features in a compact, light device that allows the user to operate this rebar detector with one hand making the task of locating rebars a simple and efficient process. In addition, Proceq’ s rebar detector convinces through its intuitive user interface making rebar detection easy.
Key Features
A rebar detector with real-time visualization of the rebars beneath the instrument
Visual indication of rebars in close proximity
The Profoscope is a rebar detector with the ability to identify the mid-point between rebars as well as the orientation of rebars
Optical and acoustical indication of rebar location and minimum cover alert
This rebar detector offers neighboring bar correction
Regional settings ( metric, imperial)
Cordless and single handed operation
Specification:
Power supply 2 x 1.5 V AA ( LR6) batteries
Voltage range 3.6 V to 1.8 V
Battery lifetime
Backlight off > 50 hr
Backlight on > 15 hr
Time outs
Sleep mode 30 s
Auto shut down 120 s
Environmental conditions
Temperature range -10° C to 60° C ( 14° to 140° F)
Humidity range 0 to 100 % rH
Protection range IP54
Standards and regulations applied BS 1881 part 204; DIN 1045; SN 505 262; DGZfP B2
