• Dipasang24 Agustus 2019
• Harga1.700.000
• KotaKota Jakarta Pusat
• MerkMOXA
• TipeTCC-100
• KondisiBaru

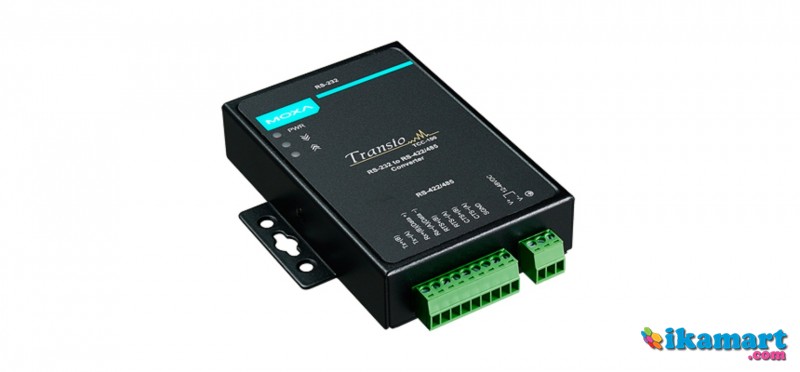

MOXA TCC-100 RS-232 to RS-422/485 converter, -20 to 60C operating temperature. Produk ini sangat handal dengan deskripsi sebagai berikut :

MOXA TCC-100 adalah seri konverter RS-232 ke RS-422/485 untuk meningkatkan kemampuan jaringan dengan memperluas jarak transmisi RS-232. MOXA TCC-100 adalah seri converter yang merupakan solusi ideal untuk mengkonversi RS-232 sinyal ke RS-422/485 di lingkungan industri critical.

Highlights
*. RS-232 to RS-422 conversion with RTS/CTS support
*. RS-232 to 2-wire or 4-wire RS-485 conversion
*. Wall and DIN-rail mounting
*. Plug-in terminal block for easy RS-422/485 wiring
*. LED indicators for power, Tx, Rx
*. -20 to 60C operating temperature

Includes
1 x TCC-100 unit
1 x installation guide
1 x warranty statement
1 x DK-35A (DIN-rail mounting kit)
1 x power jack to 3-pin terminal block adaptor

Connector : DB9 female
Signals : RS-232 TxD, RxD, RTS, CTS, GND
Connector : Terminal Block

Signals
(interface selected by DIP switch)
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals Data+, Data-, GND

Operating Temperature
Standard Models -20 to 60C (-4 to 140F)
Wide Temp. Models -40 to 85C (-40 to 185F)

Source of Input Power
Power input jack

Input Voltage : 12 to 48 VDC
Power Consumption : 300 mA @ 12 V

Note :

* Garansi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi).

*** MOXA Authorized Reseller ***
