• Dipasang25 Agustus 2019
• Harga3.850.000
• KotaKota Jakarta Pusat
• MerkMOXA
• TipeioLOGIK
• KondisiBaru

MOXA ioLogik E1214 Remote Ethernet I/O, 6DI/6Relay, 2-Port Switch

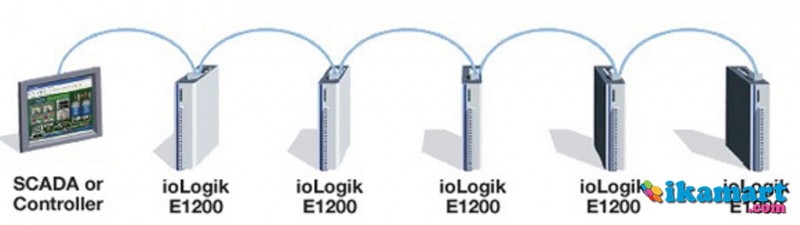

Daisy-Chained Ethernet I/O Connection
A new era of extensible Ethernet I/O arrays is here. The ioLogik E1200 industrial Ethernet remote I/O comes with two switched Ethernet ports to allow for the free flow of information downstream, to another local Ethernet device, or upstream, to a control server. Applications such as factory automation, security and surveillance systems, and tunneled connections can make use of daisy-chained Ethernet for building multidrop I/O networks over standard Ethernet cables. Many industrial automation users are familiar with multidrop as the configuration most typically used in fieldbus solutions. The daisy-chain capabilities supported by ioLogik E1200 Ethernet remote I/O units not only increase the extensibility and installation possibilities for your remote I/O applications, but also lower overall costs by reducing the need for separate Ethernet switches. Daisy-chaining devices in this way will also reduce overall labor and cabling expenses. For example, if a production facility contains 700 stations with 20 I/O points per station, the savings on wiring costs can reach as much as 15% of the total expense.

Features and Benefits
- Built-in 2-port Ethernet switch for daisy-chain topologies
- Free support of Moxaﾒs push-based Active OPC Server Lite
- User-defined Modbus/TCP addressing
- I/O peer-to-peer function
- MXIO programming library for Windows and WinCE VB/VC.NET and Linux C APIs
- Web configuration with Import/Export function

Note :
* Garansi Resmi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi)

*** MOXA  Authorized Reseller ***
