Kami menawarkan produk MOXA Serial to Ethernet yang sangat handal dan terpercaya serta sudah banyak digunakan oleh para teknisi profesional. Adapun deskripsinya sebagai berikut :
Highlights
World's lowest power consumption, only 1 W
Speedy 3-step web-based configuration
Surge protection for serial, Ethernet, and power lines
COM port grouping and UDP multicast applications
Screw connectors for secure installation
Real COM/TTY drivers for Windows and Linux
Standard TCP/IP interface and versatile TCP and UDP operation modes

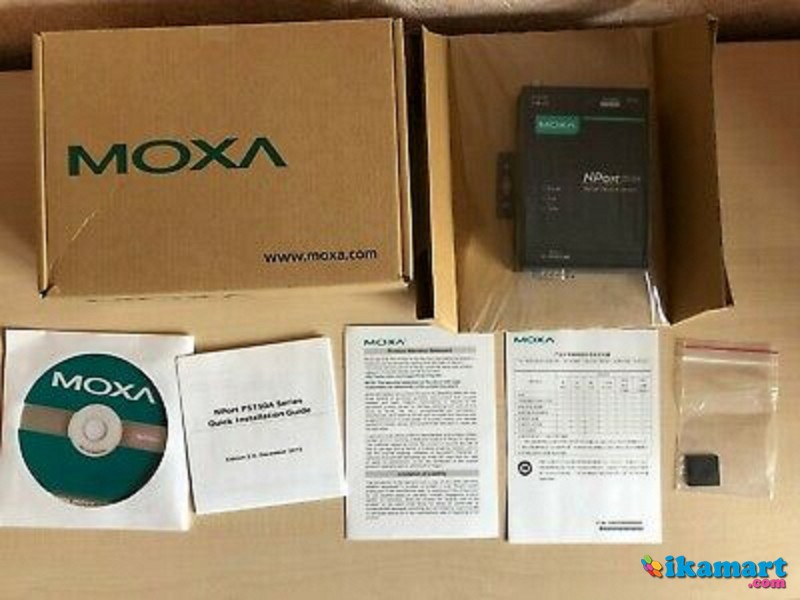

Includes
1 x NPort 5150A unit
1 x support CD/DVD
1 x installation guide
1 x power adaptor
No. of Ports : 1
Speed : 10/100 Mbps, auto MDI/MDIX
Connectors : 8-pin RJ45
Magnetic Isolation Protection : 1.5 KV built-in
Serial Standards : RS-232/422/485
Number of Ports : 1
Connectors : DB9 male
Serial Line Protection : 15 KV ESD protection for all signals, Level 1 Surge, EN61000-4-5
RS-485 Data Direction Control : ADDC (automatic data direction control)
Pull High/Low Resistor for RS-485 : 1 K, 150 K
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark
Flow Control : RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate : 50 bps to 921.6 Kbps
Note :
*. Garansi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi).
