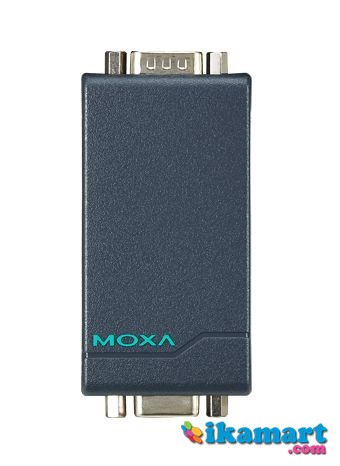

MOXA TCC-80 Port-powered RS-232 to RS-422/485 converter
Highlights
External power source supported but not required
High-speed transmission up to 921.6 Kbps
Compact size
Converts RS-422, and both 2-wire and 4-wire RS-485
RS-485 automatic data direction control
Automatic baudrate detection
Built-in 120-ohm termination resistors
LED port power indicator
Connector :
- DB9 male
- Terminal Block
Serial Standards : RS-232, RS-422, RS-485
Baudrate : 50 bps to 921.6 kbps (supports non-standard baudrates)
Isolation : DB9: 2 kV
RS-485 Data Direction Control : ADDC® (automatic data direction control)
Terminator for RS-485 : N/A, 120 ohms, 120 kilo-ohms
Source of Input Power : RS-232 port (TxD, RTS, DTR) or power input jack
Input Voltage : 5 to 12 VDC
Power Consumption : 10 mA @ 5 V (with termination disabled)
Housing : Plastic top cover, metal bottom plate
Installation : Desktop
Includes
1 x TCC-80 unit
1 x installation guide
1 x warranty statement
Note :
*. Garansi Resmi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi).
